Punch unit
The punch unit is available in the following three types. You can see details of each type by clicking any of the following images.
 |
 |
 |

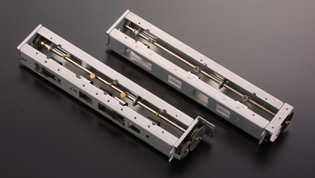

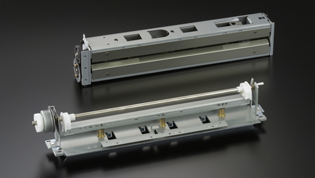

Punch unit for copying machine |

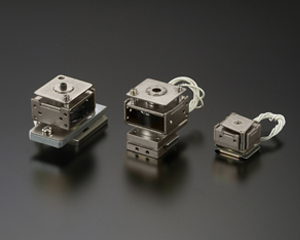

Card punch unit |
For plate making |

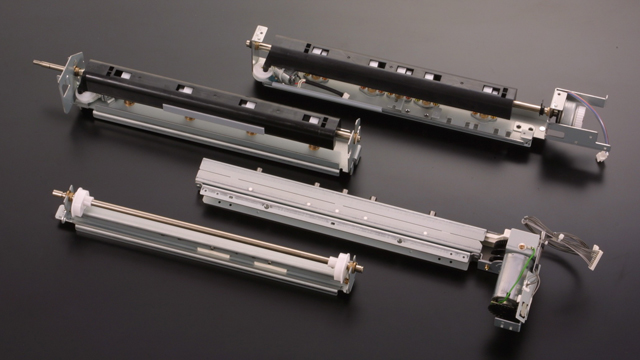

Punch unit for copying machine
 |
|
 |
 |
Characteristics
The unit is installed in the post-processing machine (finisher) of a copying machine that processes binding holes of files.
Units are roughly divided into a rotary type, which punches paper during operation, and a reciprocating type, which punches paper while stopped. We propose an optimum model according to specifications such as operating time and thickness of punching sheet materials.
With either type, the model lineup has two punching modes, such as 2-hole/3-hole for a one-punch unit.
Use application
Post-processing machine for copying machine (sorter, finisher)
Model , specification
| Classification | Product designation | Mode of holes(mm) | Paper thickness(mm) | Weight(kg) |
|---|---|---|---|---|
| Punch specifications | Ｔype11-A |
2-φ6.5 |
0.09 |
1.20 |
3-φ8 |
0.09 |
1.20 |
||
4-φ6.5 |
0.09 |
1.20 |
||
Ｔype11-Ｂ |
2-φ6.5,4-φ6.5 |
0.18 |
1.50 |
|
2-φ8,3-φ8 |
0.18 |
1.50 |
||
Ｔype15-A |
2-φ6.5 |
0.09 |
1.20 |
|
3-φ8 |
0.09 |
1.20 |
||
4-φ6.5 |
0.09 |
1.20 |
||
Ｔype15-Ｂ |
2-φ6.5,4-φ6.5 |
0.09 |
1.50 |
|
2-φ8,3-φ8 |
0.09 |
1.50 |
||
Ｔype17 |
φ8 |
0.09 |
1.40 |
|
| Cycle punch | Ｔype12-A |
2-φ6.5 |
0.09 |
1.70 |
3-φ8 |
0.09 |
1.70 |
||
4-φ6.5 |
0.09 |
1.70 |
||
Ｔype12-Ｂ |
2-φ6.5,4-φ6.5 |
0.09 |
2.00 |
|
2-φ8,3-φ8 |
0.09 |
2.00 |
||
| Card punch | Ｔype10-Ｓ4 |
φ1.2 |
0.27 |
0.30 |
φ3 |
0.27 |
0.30 |
||
φ1.2 |
0.25 |
0.20 |
||
| Punch for plate making | Ｔype7165 |
Various shapes |
0.40 |
1.30 |
*Paper thickness in the table indicates the upper limit of possible punching thickness. However, properties differ according to paper materials, etc. Please contact us for details.
*Models described in the table above are our standard products. Other customized designs are also available. Please contact us for details.

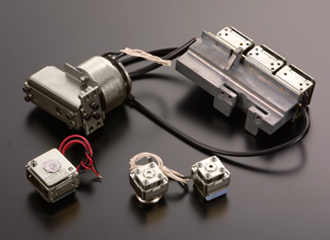

Card punch unit
 |
 |
Characteristics
Compact punch unit, which can perform punching at high speeds to make relatively small holes (Φ4 or less).
It has a mechanism designed for high quality and high reliability.
We can select punch and die materials, and design the mechanism according to the required service life.
Use application
Various types of prepaid cards/ automatic rail ticket gate/admission ticket for event

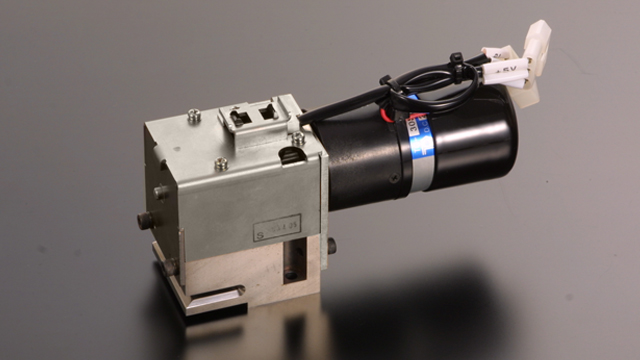

For plate making
 |
Characteristics
Punch unit for plate making with high rigidity, which can make holes for positioning block copies used in a printing machine.
It supports various shapes of punch, and suppresses adhesion of aluminum plate powder to the punch and die. Stable punching performance and long life have been achieved.
Use application
CTP system for plate making
