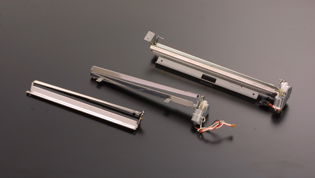

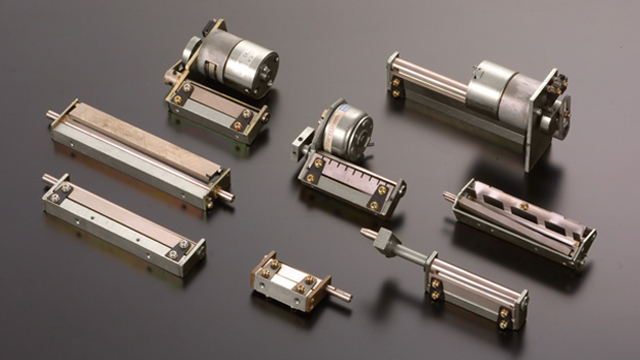

Rotary cutter unit
 |
|
 |
 |
Characteristics
This cutter is structured by combining a rotary blade and a stationary blade.
There are a V type and W type. With the V type, the rotary blade makes one rotation when cutting, and with the W type, the rotary blade makes a reciprocating motion (swings) when cutting. and V type can be cut while moving a sheet.
Moreover, in order to make a sheet easy to set, there is also a type which separated the rotary blade and the stationary blade.
According to the specification and the operating condition of a sheet, there is lineup of the material of blade, form, and component formation.
Use application
Small Rotary cutter
POS/ECR/banking terminal/various ticketing machines/thermal printer/impact printer
Medium-sized Rotary cutter
label and bar code printer/thermal printer/sublimation printer/packaging machine
Large Rotary cutter
copier/plotter/plate-setter/packaging machine
Simplicity Rotary cutter
Personal facsimile
Model , specification
| Classification | Classification | Product name | Cut width(mm) | Paper thickness(mm) | Weight(kg) |
|---|---|---|---|---|---|
| Type W series | Type 41 series | W12B |
120 |
0.15 |
0.25 |
W8.5B |
85 |
0.20 |
0.22 |
||
W7B |
70 |
0.20 |
0.20 |
||
W6B |
60 |
0.30 |
0.15 |
||
W3.5B |
35 |
0.35 |
0.10 |
||
| Type 56 series | W40B |
400 |
0.15 |
1.90 |
|
W37B |
370 |
0.15 |
1.80 |
||
W32B |
320 |
0.18 |
1.60 |
||
W28B |
280 |
0.20 |
1.50 |
||
W23B |
230 |
0.20 |
1.30 |
||
W20B |
200 |
0.20 |
1.20 |
||
W15B |
150 |
0.30 |
1.00 |
||
| Type 72 series | W23.5I |
235 |
0.10 |
0.36 |
|
W14.5I |
145 |
0.15 |
0.21 |
||
W9.7I |
97 |
0.20 |
0.15 |
||
| Type 74 series | W22.5H |
225 |
0.10 |
0.36 |
|
W12H |
120 |
0.15 |
0.21 |
||
W8H |
80 |
0.20 |
0.15 |
||
| Type 69 series | W47B |
470 |
0.25 |
3.00 |
|
| Type V series | Type 60 series | V32A |
320 |
0.15 |
1.10 |
V28A |
280 |
0.15 |
1.00 |
||
V23A |
230 |
0.20 |
0.90 |
||
V15A |
150 |
0.20 |
0.60 |
||
| Type 68 series | V26.5P |
265 |
0.10 |
0.90 |
|
V22.5P |
225 |
0.15 |
0.80 |
||
V18P |
180 |
0.20 |
0.60 |
||
V15P |
150 |
0.20 |
0.50 |
||
V13.5P |
135 |
0.25 |
0.45 |
||
| Type 9647 series | V18BCL |
180 |
0.20 |
1.40 |
|
V15BCL |
150 |
0.30 |
1.30 |
||
V13BCL |
130 |
0.35 |
1.20 |
||
V18BCML |
180 |
0.20 |
1.40 |
||
V15BCML |
150 |
0.30 |
1.30 |
||
V13BCML |
130 |
0.35 |
1.20 |
||
| Type 64 series | V47E |
470 |
0.18 |
2.80 |
|
V37E |
370 |
0.18 |
2.30 |
||
| Type 75 series | V92.5E |
925 |
0.18 |
10.50 |
|
| Type76series | V64E |
640 |
0.18 |
5.80 |
*The paper thickness in the table indicates the upper limit of cuttable thickness. However, properties differ according to paper materials, etc. Please contact us for details.
*Models described in the table above are our standard products. Other customized designs are also available. Please contact us for details.
