Slide cutter unit
 |
|
 |
 |
Characteristics

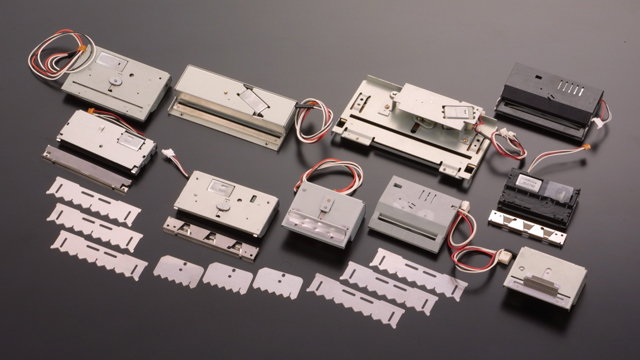

Cutter combines reciprocating movable blade with a fixed blade.
The movable blade is roughly divided into V-shaped and linear-shaped types, and the V-shaped type is further divided into three types: full cut (full length cut), partial cut (leaving the center uncut), and full/partial switching mechanism. To cut sets of sheets easily, it is also possible to make a separate rotary blade and fixed blade.
The linear-shaped type can cut relatively thick paper, allowing high-grade cutting. In particular, it is suitable for cutting photographic paper, which requires a high-grade cut edge.
Use application

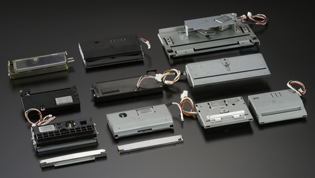

Small slide cutter
POS/ECR/banking terminal/various ticketing machines/thermal printer/impact printer

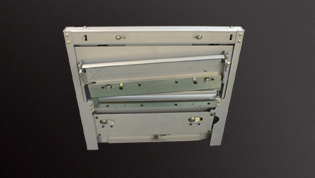

Medium-sized slide cutter
For bookbinding/laboratory machine/label and bar code printer/making business cards
Model , specification
| Classification | Product name | Cut width(mm) | Paper thickness(mm) | Weight(kg) |
|---|---|---|---|---|
| Type 84 series | W12NM |
120 |
0.12 |
0.25 |
W9.4NM |
94 |
0.12 |
0.16 |
|
W6.3NM |
63 |
0.12 |
0.12 |
|
W8.5NM |
85 |
0.12 |
0.16 |
|
W6.3NM |
63 |
0.12 |
0.12 |
|
| Type 88 series | W12GM |
120 |
0.12 |
0.25 |
W8.5GM |
85 |
0.12 |
0.16 |
|
W6.3GM |
63 |
0.12 |
0.12 |
|
W8.5CM |
85 |
0.12 |
0.16 |
|
| Type 79 series | W32QMR |
320 |
0.20 |
0.18 |
W28QMR |
280 |
0.30 |
1.64 |
|
W23QMR |
230 |
0.30 |
1.44 |
|
| Trimming | W32DMR |
320 |
0.12 |
19.00 |
*The paper thickness in the table indicates the upper limit of cuttable thickness. However, properties differ according to paper materials, etc. Please contact us for details.
*Models described in the table above are our standard products. Other customized designs are also available. Please contact us for details.
