Technical reference
Dimensinal Tolerance
Linear Tolerance
| Dimensions | Normal Tolerance | Premium Tolerance |
|---|---|---|
～10mm |
±0.10mm |
±0.05mm |
10～15mm |
±0.13mm |
±0.07mm |
15～25mm |
±0.20mm |
±0.10mm |
25～50mm |
±0.30mm |
±0.18mm |
50mm以上 |
±0.6% |
±0.3% |
Angle Tolerance
| Normal Tolerance | Premium Tolerance |
|---|---|
±0.5° |
±0.3° |
Surface Roughness
5S-10S（7S on the average） |

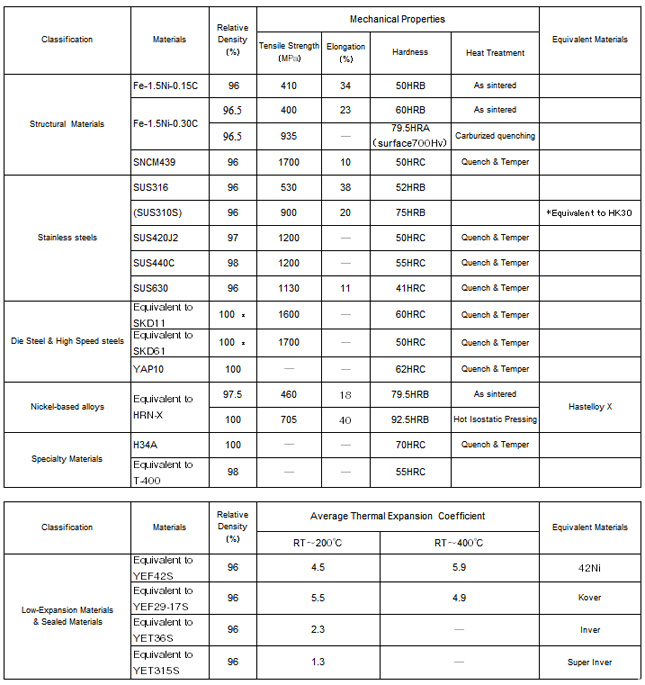

Typical Meterials
※HIP processing in the case of an application
- The above date are shown only for reference, and are not necessarily guaranteed for actual Proterial Precision products.
- Proterial Precision offers an extensive range of ferrous and nonferrous materials according to the needs of individual customers, in addition to those appearing in this brochure.
- YAP,YEF,YET,HRN are registered trademark of Proterial,Ltd.
